Rapid Ref : 4015492

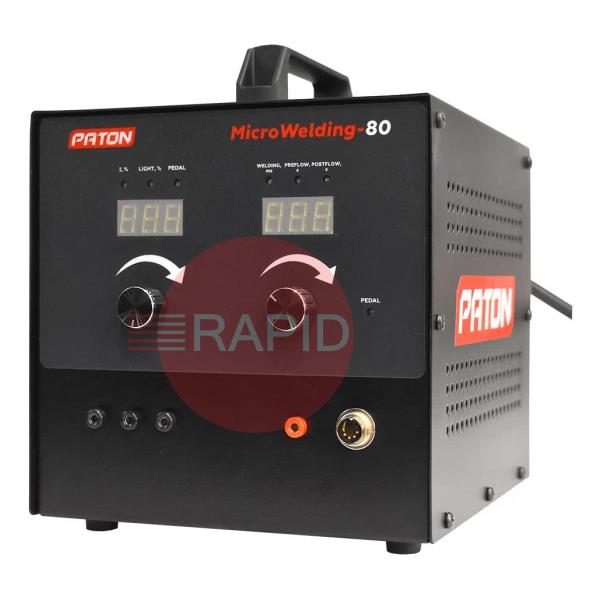

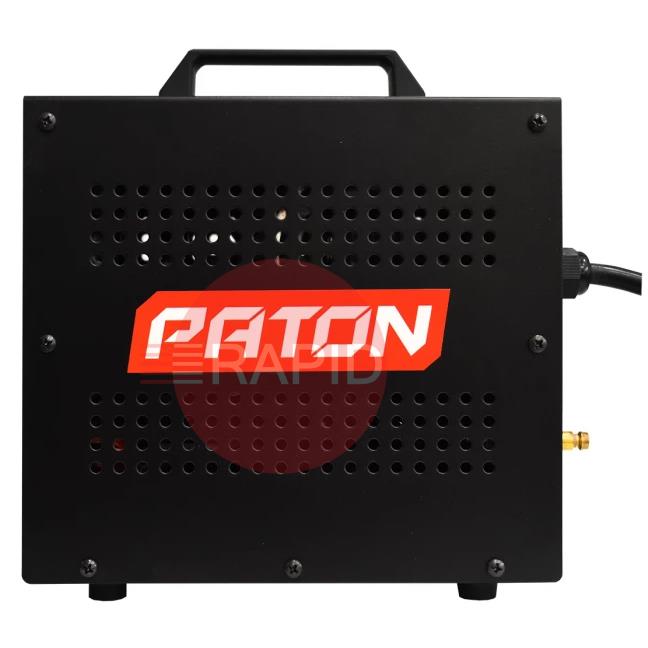

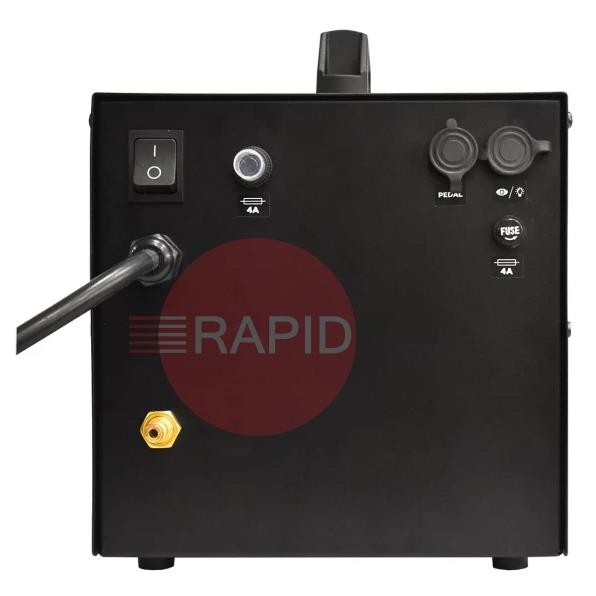

PATON MicroWelding-80 Pulse Arc Welder - 230v, 1ph
4015492

Click here to see what's included

£720.00 EX VAT

SSP Suggested Selling Price = £1100.00 YOU SAVE £380.00

Buy in 3 easy interest free payments of £240.00^† with

Compact & Portable pulse-arc welding power source
Ukrainian Engineering: Built by Paton™ in Europe, one of Europe’s most trusted welding brands with over 60 years of innovation
Scope of use: Repair of moulds and stamps, repair of spectacle frames, repair of jewellery, repair of medical devices, assembly production of electronic components, design studios and creative workshops
1-Year Warranty

Product Details

PATON MICROWELDING-80 is designed for pulse-arc welding with a tungsten electrode in an argon protective gas environment. The machine has a nominal current of 210A with the ability to adjust the pulse duration from 0.1 to 30 milliseconds. It also features adjustable pre- and post-gas flow time.

Specification

Mains Voltage (50/60 Hz):	220/230V
Nominal Welding Current:	210A
Welding Current Adjustment Range:	2 - 100%
Welding Time Adjustment Range:	1 - 30ms
Pre-Gas Flow Time Adjustment Range:	0,1 - 5s
Post-Gas Flow Time Adjustment Range:	0,1 - 5s
Nominal Power Consumption:	48 kVa
Dimensions (L x W x H):	270mm x 215mm x 225mm
Weight without accessories:	4.7kg
Protection Class:	IP21

Perfect For

Repair work
Electronic components assembly
Production workshops

Brochures & Manuals

BROCHURES & MANUALS

View Brochure

What's Included

	PATON Copper Electrode for Tack Welding Mode with Cable
	PATON Collet for Ø0.5mm Electrode MicroWelding-80
	PATON Ground Clamp with Cable for MicroWelding-80
	PATON Nozzle for Working with Lithium Batteries

	PATON Foot Pedal for MicroWelding-80
	PATON Torch with Moveable Tungsten Electrode & Ø1mm Collet
	PATON Torch Holder with Auto-Darkening Protective Glass
	PATON Quick Gas Connector
	PATON 1 Year Warranty
