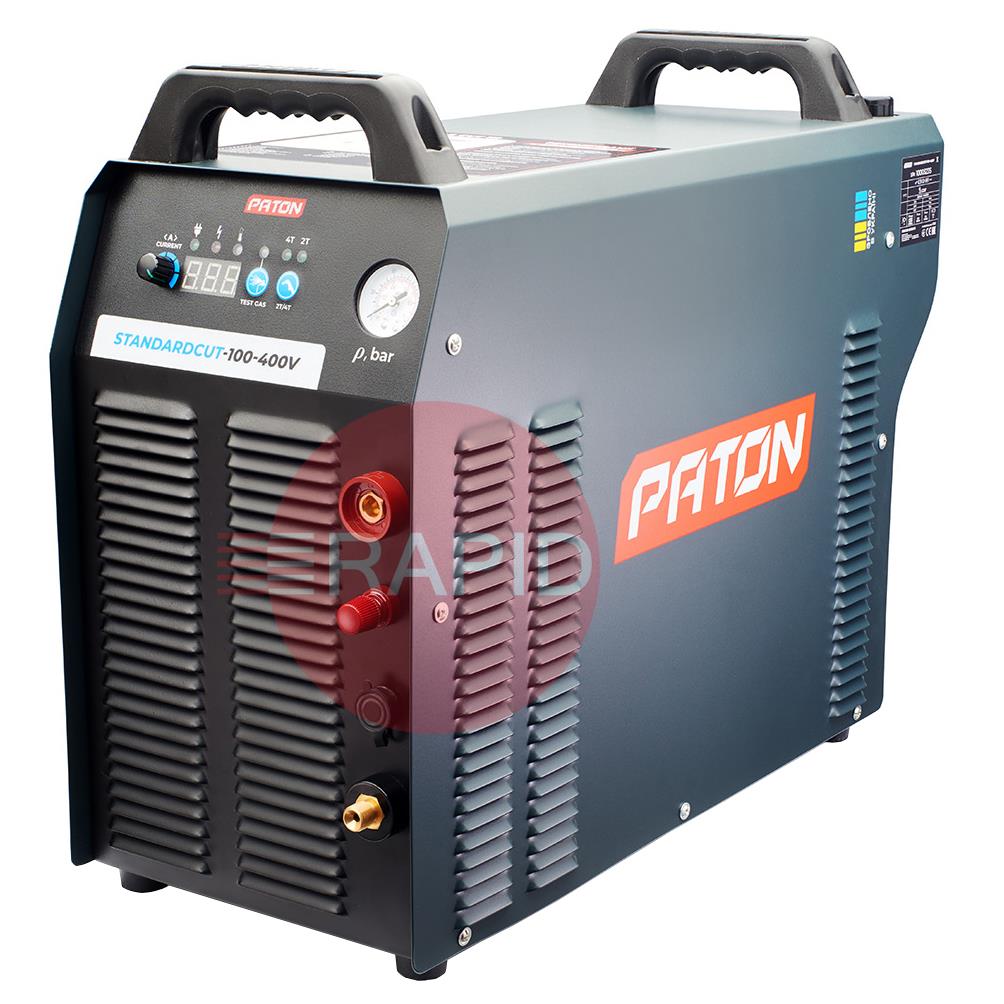

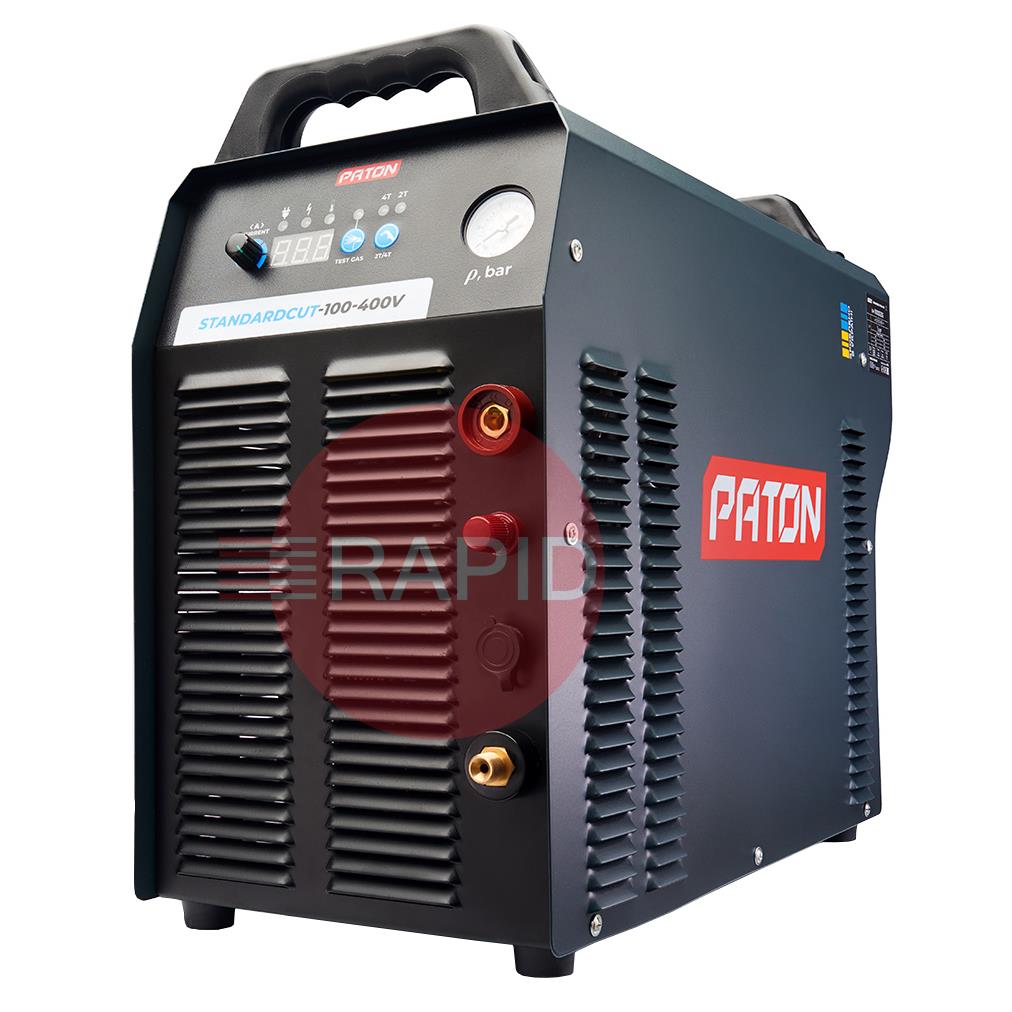

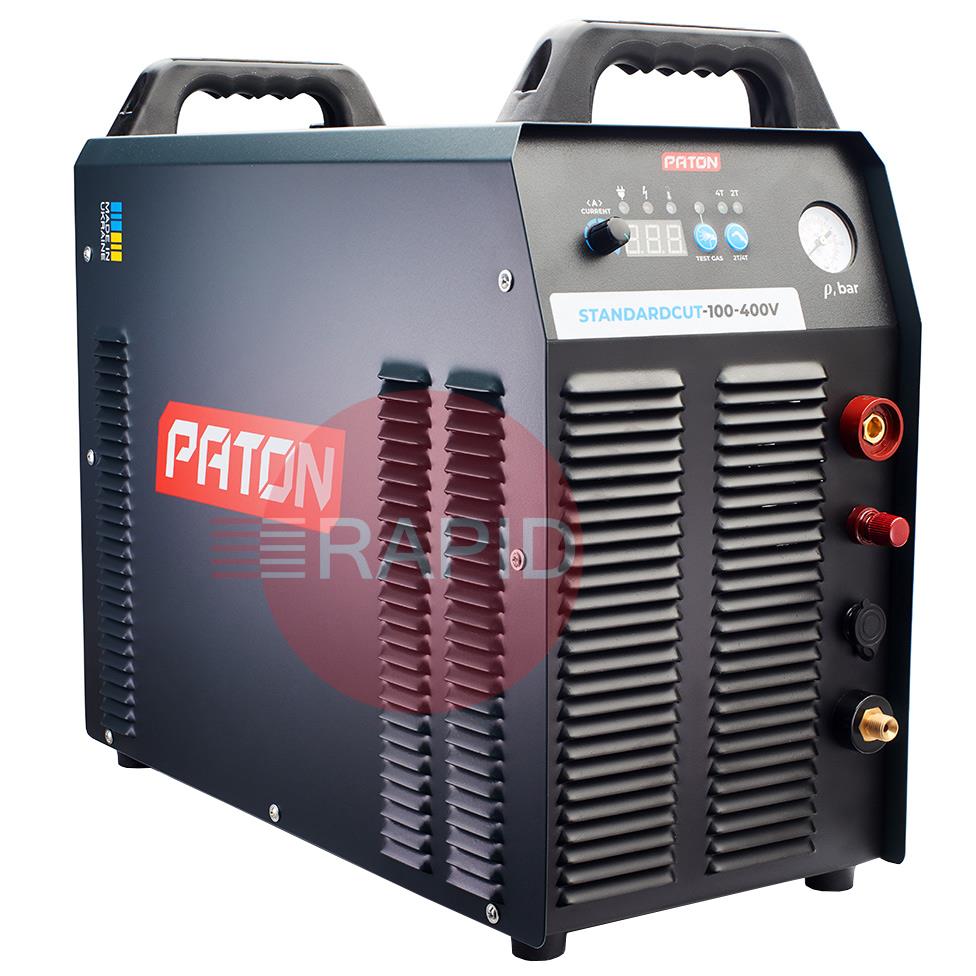

PATON StandardCUT-100 Plasma Cutter - 400v, 3ph
1063010012

Click here to see what's included

£1070.83 EX VAT

SSP Suggested Selling Price = £1610.00 YOU SAVE £539.17

Buy in 3 easy interest free payments of £356.94^† with

Additional items to consider

Please note, this product does not qualify for our standard shipping rates outside of the UK Mainland. Please contact us for shipping rates for this product.

35mm Cut
Intuitive and simple set-up: the unit is designed with ease of use in mind, allowing even less experienced users to get started quickly
Peak overload protection: built-in protection systems protect the equipment from sudden changes in mains voltage, increasing its durability and reliability

Product Details

The Paton StandardCUT-100 inverter plasma cutter is designed for the manual cutting of metals and alloys by means of plasma arc in an air stream, enabling high-precision cuts to be made in metals of various textures and thicknesses up to 35 mm. A three-phase 400V mains supply powers the “Standard” series, combining high power with ease of use and small dimensions. Due to the inverter's higher frequency, the unit has a lower weight and size than a classic cut-off machine. The unit is equipped with a protective system in the event of insufficient air pressure, as well as a pneumatic system with two valves – for gentle arc ignition with reduced metal spatter and to extend the service life of the plasma torch consumables.

Specification

Mains Voltage:	400V 3ph
Cutting Current Range:	35 - 100A
Duty Cycle:	100A at 50%, 70A at 100%
Maximum Power Consumption:	16.5kVA
Dimensions (L x W x H):	560mm x 233mm x 440mm
Weight:	25.8kg
Protection Class:	IP23
